0.5-8 High-speed Transmission Floating Series

·Easy to assemble

The floating range in the X and Y directions is ±0.8mm, which is an advantage during assembly.

·High - current

A hybrid power - supply design architecture with 6 amperes per pin × 4 circuits.

·16+ Gbps high - speed transmission

Differential impedance is 85 ohms.

Supports PCI - e Gen4

Viewing Series Products

Download materials

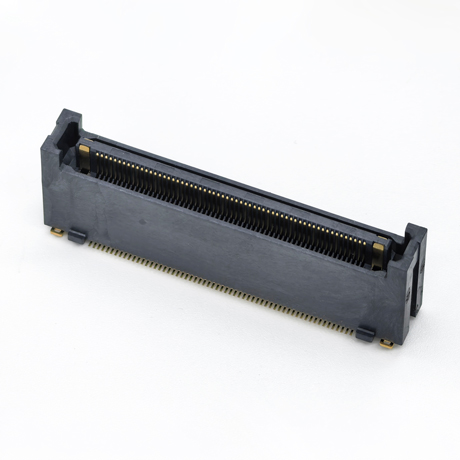

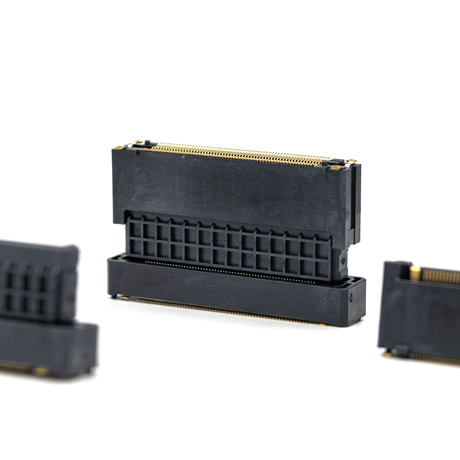

0.5-8 High-speed Transmission Floating Series Large Image.jpg

0.5-8 High-speed Transmission Floating Series Thumbnail.jpg

Related parameters

Support Protocol

PCI-Express 4.0
Transmission Rate

16Gbps
Pitch

0.5 mm
Stacking Height (mm)

10~30 mm
Pin Count

20 ~ 160 P
Floating

Yes
Rated Current

Signal: 0.5A/Pin, Power supply: 6A/Pin
Floating Range

XY ± 0.8mm
Number of Power Terminals

4
Remark

IRISO 10143 Series

Download

BTB05-8
257 KB
Download Now
